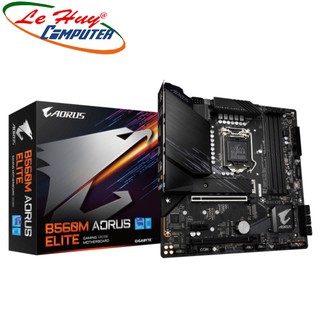

Bo mạch chủ - Mainboard GIGABYTE B560M AORUS ELITE

Giới thiệu Bo mạch chủ - Mainboard GIGABYTE B560M AORUS ELITE

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B560M AORUS ELITE

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

4 x DDR4 DIMM, tối đa 128GB
11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot

Ổ cứng hỗ trợ

- CPU: 1 x M.2 connector
- Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
- 6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen2 support
1 x USB 3.2 Gen2 Type-A port (red)
2 x USB 3.2 Gen1 ports
6 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks

LAN / Wireless

Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
